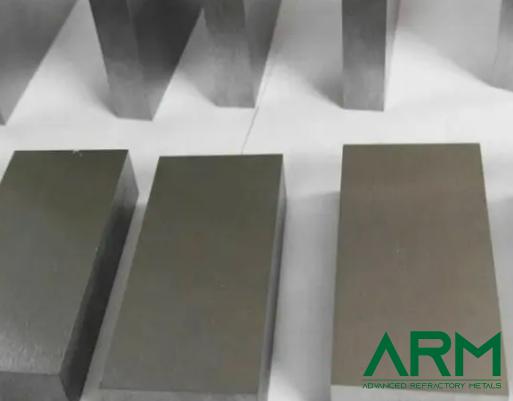

WM0118 Tungsten Sheet
Tungsten rolled products available from Advanced Refractory Metals, including tungsten sheet, plate, and foil with many options on width, length, and thickness. Pure Tungsten flat-rolled products are fabricated from pressed and sintered powder metallurgy ingot, sheets are made by the rolling process.
Descriptions of Tungsten Sheet
Tungsten rolled products available from Advanced Refractory Metals, including tungsten sheet, plate, and foil with many options on width, length, and thickness. Pure Tungsten flat-rolled products are fabricated from pressed and sintered powder metallurgy ingot, sheets are made by the rolling process. Our tungsten sheets are widely used in ion implantation, medical CT, electronics, and vacuum equipment.
Advanced Refractory Metals specializes in producing the highest quality tungsten sheets for 20 years. We provide tungsten sheets with various dimensions to meet your various needs.
Specifications of Tungsten Sheet
| Product | Tungsten Sheet |
| Item No. | PM74-S |
| Purity | W≥99.95% |
| Specification | ASTM B760 |
| Process | Pressing-sintering-Rolling-Annealing-Surface treatment |
Tungsten Sheet Dimensions (Max, mm)
| Thickness | Width | Length |
| 0.15-0.20 | 205 | 1000 |
| 0.20-0.25 | 300 | 1000 |
| 0.25-0.30 | 330 | 1000 |
| 0.30-0.50 | 350 | 1000 |
| 0.50-0.80 | 330 | 1000 |
| 0.80-1.0 | 330 | 1000 |
| 1.0-1.50 | 300 | 1000 |
| 1.50-3.0 | 300 | 1000 |
Grinding Tungsten Sheets (mm)
| Thickness | Width | Length |
| 1.5-2.0 | 150 | 200 |
| 2.0-3.0 | 200 | 250 |
We can provide sheets with the grinding surface, it will need to be thicker than 1.5mm.
Applications of Tungsten Sheet
* Parts of Electric Light Source and Electron Tube
* Medical Facilities
* Obstruction of Radiation and Interference
* Heat Shields, Heat Elements & Structures of High-Temperature Furnace
* Evaporation Boats
Packaging of Tungsten Sheet
Our tungsten sheet is carefully handled to prevent damage during storage and transportation and to preserve the quality of our product in its original condition.
